*SPECIFICATION*

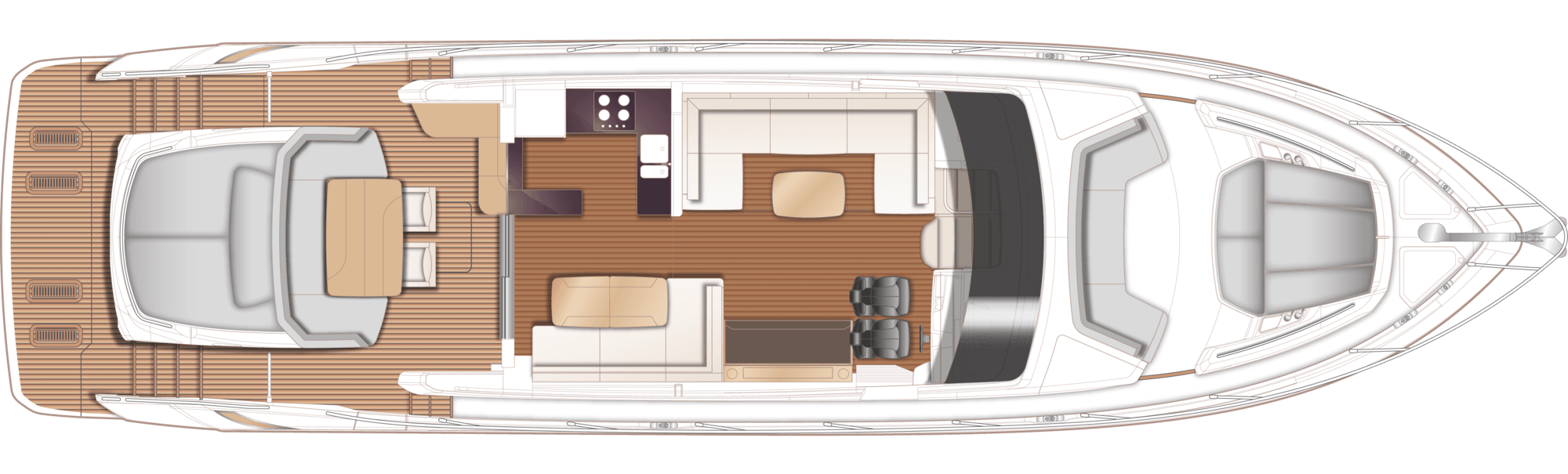

V65 Main Deck

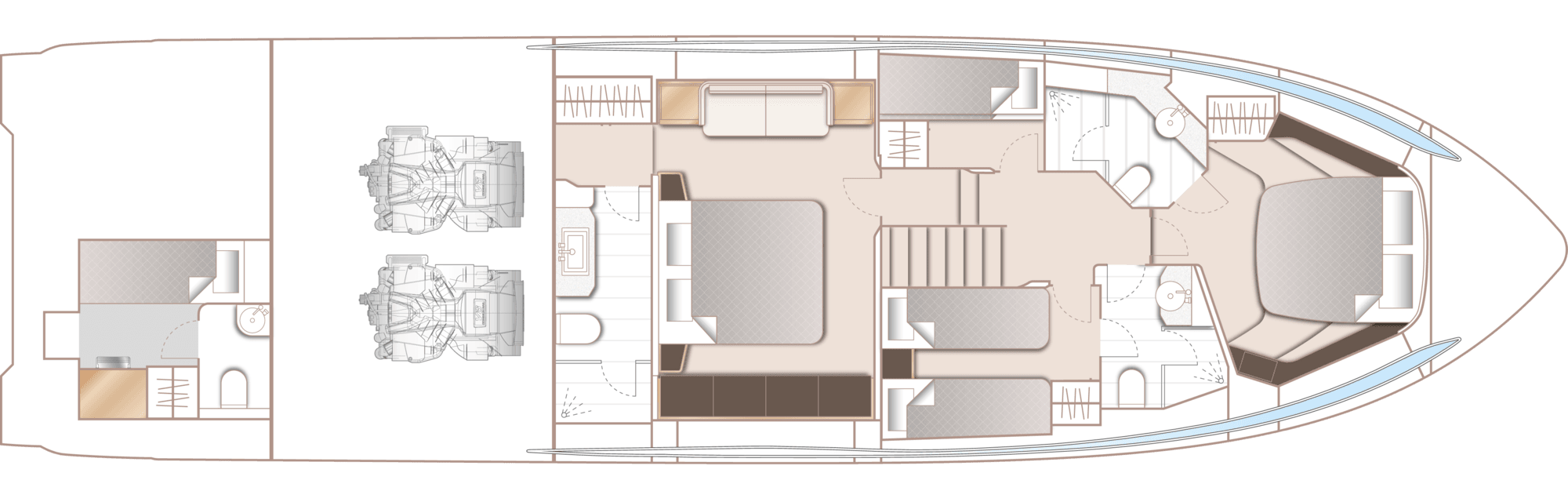

V65 Lower Deck
Length overall (incl. pulpit)
66ft 10in (19.34m)
Length overall (excl. pulpit)
65ft 11in (19.09m)
Beam
16ft 9in (5.08m)
Draft
4ft 9in (1.47m)
Displacement approx. (half load)
36,073kg (79,527lbs)*
Fuel capacity
902 gal/1,083 US gal/4,100l
Water capacity (incl. calorifier)
192 gal/230 US gal/873l
Twin MAN V12 (2 x 1,400mhp)
Speed range: 36-38 knots†
DECK FITTINGS
Teak-laid transom platform, cockpit deck and steps to side deck
Reversible electric anchor winch with foredeck and helm position controls
Stemhead roller with automatic anchor launch and retrieve
Self-stowing (40kg/88lb) Delta anchor with 60m of chain
Bow rope storage locker
Freshwater deck/anchor wash
Walk through coachroof seating area
Foredeck sunbathing area with cushions and integrated adjustable headrests
Deck storage lockers for fenders and foredeck sunbed cushions
Stainless steel bow, stern and spring cleats (8)
Stainless steel pulpit and guardrails
Stainless steel coachroof handrails
Foredeck escape hatch
PVC rubbing band with stainless steel insert
LED deck level lighting
Illuminated crown logo to transom
Full set of IMCO navigation lights
Riding light
Searchlight with remote control
Twin electric horns
Fuel and water fillers
COCKPIT AND BATHING PLATFORM
Self draining
U-shaped seating with teak folding table and folding director’s chairs
Sunbed aft
Wetbar including barbecue, waste bin, top loading coolbox and storage
LED overhead and deck level lighting
Stainless steel handrails
Garage (to take tender up to 3.3m) with electro-hydraulic door and tender launch system with electric winch
Liferaft stowage locker
Rope stowage lockers
Lockable gas strut assisted hatch to lazarette
Lockable gas strut assisted hatch to lazarette/optional crew cabin
Lockable gas strut assisted hatch to engine room
Locker containing remote fuel cocks, manual bilge pump with valve chest and manual controls for automatic fire extinguishers
Twin transom doors leading to bathing platform
Electro-hydraulic raise/lower teak laid bathing platform (500Kg SWL)
Retractable bathing ladder (manual) in side of hydraulic platform
Transom steps to access stern from bathing platform when in lowered position
Hot and cold transom shower
Waterproof Fusion Signature 6.5" (2) speakers linked to saloon sound system
220/240v shore support inlet in locker
Tonneau cover
HELM POSITION
Twin helm seats with fore and aft adjustment and flip up base to helm seat
Instrument console with 9” colour screen incorporating engine instrumentation, fuel gauges and rudder position indicator
Instruments and controls at helm position: - power-assisted electro-hydraulic steering - adjustable steering wheel - rudder position indicator - high-speed magnetic compass - electronic engine controls - colour radar with GPS/chart plotter (twin 12.1” HD displays) - speed and distance log - Echo sounder with alarm - trim tab controls with indicators - bow thruster control - electric anchor winch remote control - autopilot - VHF with DSC R/T with intercom - remote control searchlighthorn button
Drinks holders
Toughened glass screen (clear for night vision)
Windscreen wipers
Freshwater windscreen wash
Exterior black mesh windscreen covers
Bilge pump controls with visual pump running warnings
24v and 240v electrical control panel
Riding light, helm and navigation light control switches
USB connection point
LED overhead lighting (24v) and night lighting
Pantograph helmsman’s side door to starboard side deck
Timber Flooring (V groove planked)
SALOON
U-shaped sofa to port
Coffee table
Sideboard unit with bottle and glass storage
Refrigerator
Icemaker
49” UHD LED TV on rise and fall
Fusion Apollo MS-RA770 audio system with streaming capability, connected to Anthony Gallo speakers (4) and Fusion MS-AB206 subwoofer
Electric drop window to port
Blinds or sunscreens to all windows and doors
Dimmable LED overhead and concealed lighting (24v)
Access stairway to lower accommodation
Electric opening roof with glazing and blinds
Timber flooring (V groove planked)
DINING AREA
L-shaped sofa
Folding dining table
Stainless steel framed sliding door to cockpit with integrated hinging window aft of galley
Manual blinds or sunscreens to all windows and doors
GALLEY
Solid surface counter top
4-zone ceramic induction hob
Extractor fan
Combination microwave/convection oven with grill
Twin-bowl stainless steel sink with mixer tap
Dishwasher
Full height refrigerator/freezer (270l)
Waste bin
Drawers and storage cupboards
Dimmable LED overhead and task lighting (24v)
220/240v outlets (4)
ACCOMMODATION
All cabins and bathrooms feature opening portholes
All cabins feature 220/240v power points
All bathrooms feature electric freshwater toilets and 240v shaver points
OWNER'S STATEROOM
Large double bed with drawers below
Twin bedside tables
Wardrobes with hanging and drawer storage
Dressing table
Mirror to vanity unit
Sofa
Storage lockers and drawers
40" UHD LED TV
Fusion Apollo MS-RA770 audio system with streaming capability, connected to Focal 100 ICW6 speakers (4)
Panoramic windows including opening porthole
Manual tension venetian blinds
LED overhead and concealed lighting (24v)
Individual berth lights
220/240v outlets (2)
USB charging point (1)
Fitted carpet
EN-SUITE BATHROOM
Washbasin with solid surface counter top
Mirror
Storage lockers
Shower compartment with automatic pump out
Window with opening porthole
Manual tension venetian blind
Bathroom accessories
Flooring in solid surface
FORWARD STATEROOM
Wardrobe with shelves
Deck hatch
STARBOARD GUEST CABIN
Two single beds with drawers below (with option of double bed conversion)
Bedside table
Day access door from passageway
PORT GUEST CABIN
Two single beds
Wardrobe with shelf
220/240v outlet (1)
LOWER ACCOMODATION LOBBY
Washer/dryer with storage area above located below companionway stairs (option of separate washing and drying machines if required)
OPTIONAL CREW CABIN (IN PLACE OF AFT LAZARETTE)
Single bed with storage below
Opening porthole
LED overhead lighting (24v)
Individual berth light
Non-slip safety flooring
Shower with automatic pump out
POWER AND DRIVE SYSTEMS
5-bladed propellers in nickel aluminium bronze
Bow thruster (170kgf/375lbf) with single station controls
Engine room lighting
Engine room access hatch and ladder
Power-assisted electro-hydraulic steering system
Trim tabs with indicators
Electronic engine and gear shift controls
Engine room extractor fan with electronic time delay
Fresh water supply point in engine room
Dripless self aligning shaft seals
ELECTRICAL SYSTEMS 24 Volt:
4 x heavy duty batteries for engine starting
4 x heavy duty auxiliary batteries
Battery link facility with remote control at helm position
Both battery banks are charged using a voltage sensitive relay that parallels both battery banks when a charging source is present
80 amp battery charger
Remote battery master switches with control switch at main switch panel
Circuit breakers on all circuits
12v voltage dropper for certain navigation and radio circuits
220/240 Volt:
13.5Kw diesel generator in own sound shield with water cooled specially silenced exhaust
63 amp shore support inlet
Generator/shore support change-over switch
Polarity check system
Earth leakage safety trip
Power points in: Owner’s stateroom, guest cabins, galley and saloon area
Shaver points in all bathrooms
FUEL SYSTEM
Twin fuel tanks (in NS8 marine grade alloy) with interconnection system giving 902 gal / 1,083 US gal / 4,100l capacity
Fuel fillers on port and starboard side decks
High-capacity duplex fuel filters with water traps with change-over valves, water warning sensors connected to warning lights at helm console
Remote fuel cocks in cockpit locker
Fuel gauges at helm console
WATER SYSTEM
Water tanks totalling 176 gal /211 US gal / 800l plus 16 gal /19 US gal / 73l hot water calorifier
Water heated by engines and 240v immersion heater
Automatic water pump with filter
Main circuit breaker at switch panel
Water level gauge
Deck filler
Electric freshwater toilet system with 60 gal /72 US gal / 272l holding tank, content gauge and low noise electric overboard discharge, with macerator backup system as well as dockside discharge system
FIRE EXTINGUISHERS
Automatic/manual override fire extinguishers in engine room with warning system at helm position
Hand-operated fire extinguishers (6) in owner’s stateroom, forward, port and starboard guest cabins, galley and helm position
Additional extinguisher fitted when optional aft cabin is specified
BILGE PUMPS
Automatic/manual override electric bilge pumps in engine room (2), rudder area, lazarette and forward accommodation (6 in all)
High-capacity manual bilge pump with valve system and suction points in same areas
Electric bilge pumps have controls and warning lights at helm
OTHER STANDARD EQUIPMENT
Ensign staff
Fenders (6)
Mooring warps (4)
Boat hook
First Aid kit
Tool kit
Owner’s manual and engine manual
Quilted bedspreads supplied to all cabins (except optional crew cabin)
Set of glassware (8 settings consisting of tumbler and wine glasses)
Set of Princess china (8 settings consisting of plate, side plate, bowl, cup & saucer)
Set of cutlery (8 settings of David Mellor “Paris” cutlery 7 pieces)
Ship’s document case
Anchor winch back up handle
FINISHES
Teak-laid decks to transom platform, cockpit deck and steps to side decks
Timber-laid floor to galley, dining area, forward saloon and helm position
Furniture in choice of Rovere Oak or Alba Oak in satin lacquer finish as standard. Silver Oak or Walnut in satin or gloss lacquer finish available as an option
Solid surface floors in all bathroom suites in guest accommodation
Solid surface wash hand basin counter tops in all bathroom suites in guest accommodation
Galley counter top in solid surface
Choice of high-quality carpet and upholstery fabric from extensive range
Blinds or sunscreens to all windows and portholes
Optional crew cabin has Altro non-slip safety flooring, crew bathroom has white solid surface countertops
US Specification Includes
120/240v 60hz electrical system throughout including bespoke US socket arrangement
8MM teak in place of standard
Additional IP66 rated double electrical socket in engine room
Airconditioning / reverse cycle heating (90,000 BTU)
Araknis 210 series 48 port POE network
Bed linens- fitted & loose sheet, pillowcase (excluding optional crew cabin)
Built to ABYC and US Coast Guard recommendations
Clear bowl for generator fuel/water seperator
Cockpit audio package
Exhaust clamps in stainless steel as per ABYC standards
Generator - 21.5 kW / 60 Hz Onan in place of standard 13.5 kW / 50 Hz
Holding tank system with electric discharge (in addition to manual
Icemaker in salon
overboard and dockside discharge facilities)
Princess Yachts America HID tag
Propeller hubs drilled and tapped to suit prop puller
Refrigeration - upgraded fridge/freezer in galley
Reticulated foam for all standard exterior seating/sunbed cushions
Shore support - Dual 120/240v 50 Amp outlets with 75' Hubbell cords
Shore water inlet
Spare set of anodes (hull, trim tabs, hydraulic platform, and swim ladder)
Speed oven in place of standard microwave
Thru hull for later fitting of watermaker
TV in forward VIP connected to radio with Bluetooth facility
TV in starboard guest stateroom connected to radio with Bluetooth facility
