*SPECIFICATION*

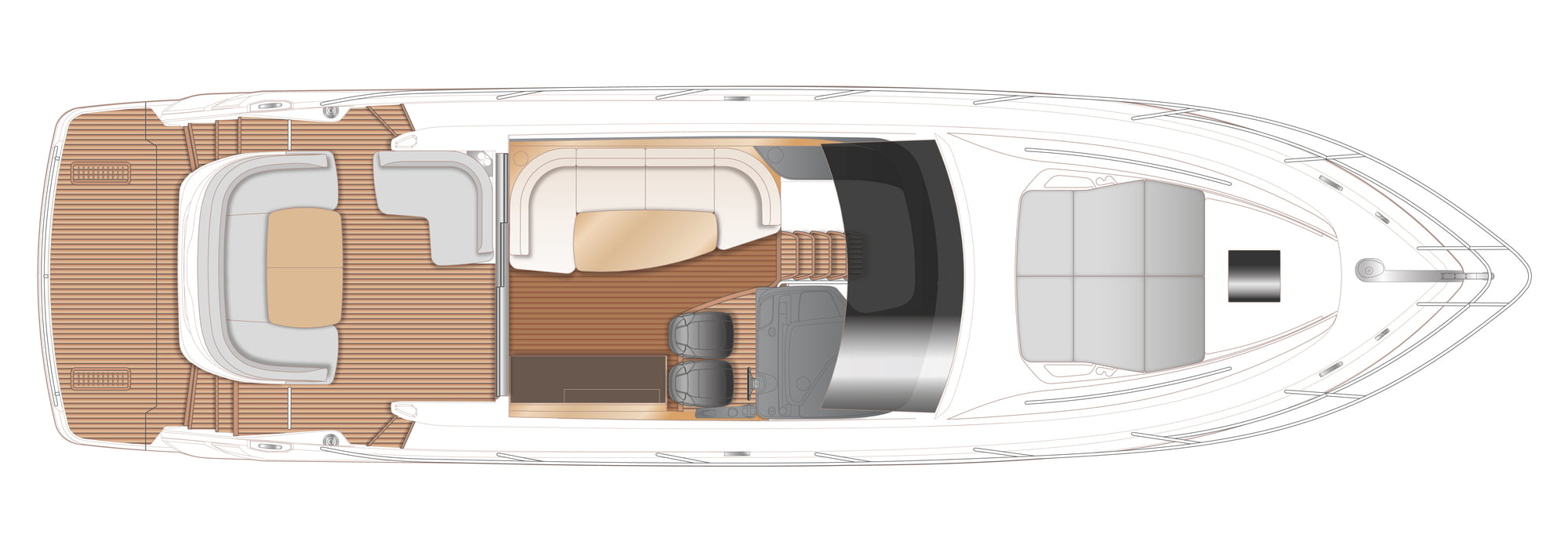

V50 Main Deck

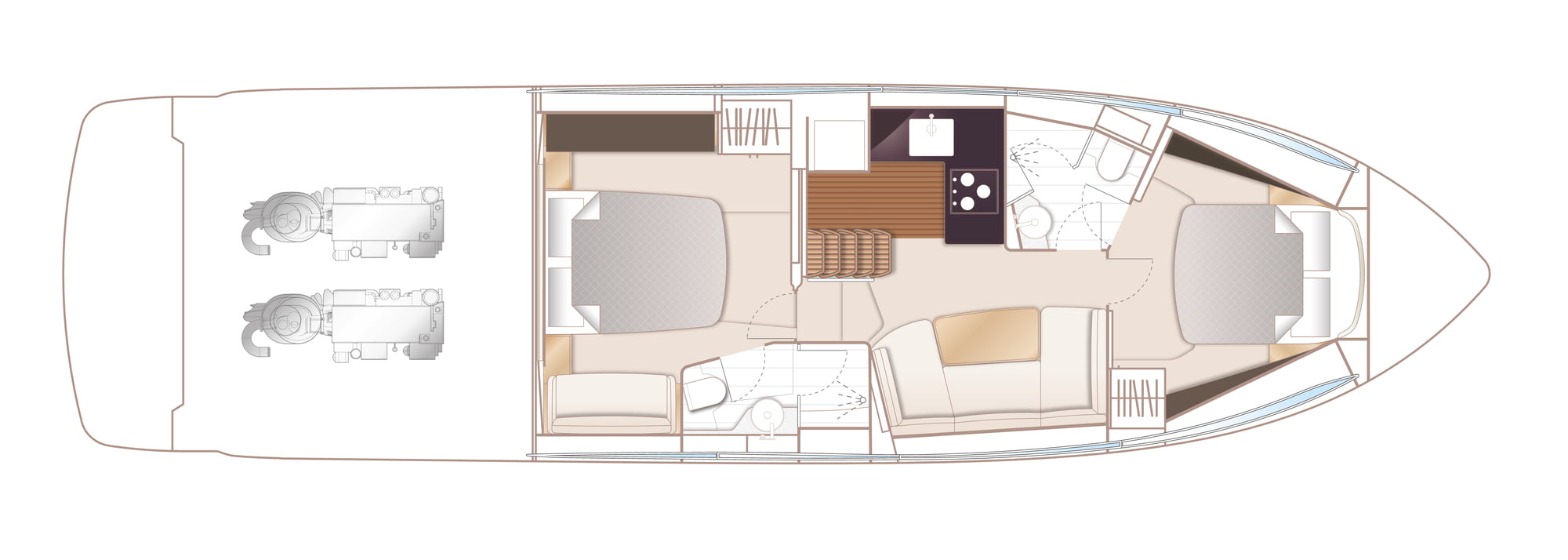

V50 Lower Deck
Length overall (incl. pulpit)
52ft 7in (16.02m)
Length overall (excl. pulpit)
50ft 4in (15.35m)
Beam
13ft 4in (4.08m)
Draft
3ft 7in (1.09m)
Displacement approx. (half load)
15,898kg (35,049lbs)*
Fuel capacity
341 gal/410 US gal/1,550l
Water capacity (incl. calorifier)
91 gal/109 US gal/414l
Twin Volvo IPS 600 (2 x 440mhp)
Speed range: 29-31 knots†
DECK FITTINGS
Teak-laid transom platform, cockpit deck and steps to side deck
Reversible electric anchor winch with foredeck and helm position controls
Self-stowing 20kg/44lb Delta anchor with 40m chain
Stemhead roller with automatic anchor launch and retrieve
Stainless steel bow, stern and spring cleats
Stainless steel bow fairleads
Stainless steel pulpit and guardrails
Stainless steel coachroof handrails
Foredeck hatch
PVC rubbing band with stainless steel insert
Illuminated crown logo to transom
Full set of IMCO navigation lights
Riding light
Remote control searchlight
Twin electric horns
Fuel and water fillers
COCKPIT AND BATHING PLATFORM
Self-draining
U-shaped seating/dining area
Folding teak table
LED overhead and low deck level lighting
Cockpit canvas cover
Stainless steel grabrails
Transom hatch to stern lazarette
Access hatch to engine room
220/240v shore support inlet in locker
Life raft locker
Teak-laid bathing platform (with optional electro-hydraulic raise/lower mechanism)
retractable bathing ladder (retractable) in side of platform
Transom door leading to bathing platform
Transom steps to access stern from bathing platform when in lowered position
Hot and cold transom shower
Locker for 2 gas bottles
Storage lockers
Waterproof speakers linked to saloon sound system
HELM POSITION
Adjustable helm seat
Instrument console incorporating engine instruments, fuel gauges and rudder position indicator
Instruments and controls at helm position: - Engine controls and joystick control - Rudder position indicator - Power-assisted steering - Adjustable steering wheel - Electric anchor winch remote control - Trim tab controls with indicators - VHF with DSC R/T - Speed and distance log - Echo sounder with alarm - Remote control searchlight - High speed compass - Horn button
Chart area
Windscreen wipers
Freshwater windscreen wash
Bilge pump controls with visual ‘pump running’ warnings (3)
Electric side window
DECK SALOON
U-shaped sofa
Dining table
Sideboard
Refrigerator
Curtains, blinds or sunscreens to all windows and doors
LED overhead downlighters (24v)
Access stairway to lower accommodation
Electric opening roof
Triple stainless steel framed sliding doors to cockpit
Radio with Wi-Fi and Bluetooth connected to saloon and cockpit speakers
Timber flooring
LOWER SALOON
L-shaped sofa
Table
24v and 240v electrical control panel with battery isolation switches
Window with opening portlights (2)
Manual tension venetian blinds
GALLEY
Solid surface worktop
3-zone gas hob with flame failure device (3-zone ceramic hob optional)
Stainless steel sink with mixer tap
Combination microwave/conventional oven with grill
Full height fridge freezer (270l)
Waste bin
Storage cupboards, drawers and lockers
Window with opening portlight
Manual tension venetian blind
ACCOMMODATION
All cabins and bathrooms feature opening portholes
All cabins feature 220/240v power points
All bathrooms feature electric freshwater toilets and 240v shaver points
OWNER'S STATEROOM
Large double bed with drawers below
Wardrobe with shelves
Drawers and storage lockers
LED overhead and individual berth lights (24v)
Sofa
Panoramic windows with opening ports
EN-SUITE BATHROOM
Wash basin with solid surface worktop
Separate stall shower
Extractor fan
Mirror
LED overhead and concealed lighting (24v)
Storage locker
Solid surface flooring
FORWARD STATEROOM
Large double bed with drawers below (option of scissor berths)
Wardrobe
Deck hatch with integrated fly screen and blind
Window with opening portlights
POWER AND DRIVE SYSTEMS
Contra rotating propellers via pod drive
Power-assisted electro-hydraulic steering
Electronic engine controls
Joystick manoeuvring system
Volvo active corrosion protection system
Engine room extractor fans with electronic time delay
Hydraulic trim tabs with indicators
Engine room lighting
ELECTRICAL SYSTEMS 24 Volt:
4 x heavy-duty batteries for engine starting
4 x heavy-duty auxiliary batteries
Engine alternators charge via split charge relays to isolate engine start batteries from auxiliaries and ensure efficient charging of both battery banks.
40-amp 24v float battery charger
Battery paralleling system (for engine start back-up)
Remote battery master switches with control switch at main panel
Circuit breakers on all circuits
220/240 Volt:
32 amp Shore support inlet
Power points in owner’s stateroom, forward guest cabin, galley (double), lower and upper saloon
Polarity check system
Earth leakage safety trip
Shaver points in both all bathrooms
FUEL SYSTEM
Twin fuel tanks (in NS8 marine grade alloy) with interconnection system giving 291 gal / 350 US gal / 1,325l capacity
Fuel fillers on both side decks
High-capacity duplex fuel filters with water traps with change-over valves, water warning sensors connected to warning lights at helm
Remote fuel cocks in cockpit locker
Fuel gauges on helm console
GAS
Overboard vented and drained locker for 2 gas bottles
Copper gas line sheathed in polythene
Camping gas regulator
Gas low/system test meter
Isolation valve with remote control
WATER SYSTEM
Water capacity totalling 80 gal /96 US gal / 364l including 11 gal /13 US gal / 50l hot water calorifier
Water heated by engine and 240v immersion heater
Automatic water pump with filter
Main circuit breaker at switch panel
Water level gauge
Deck filler
Electric freshwater toilet system with 37 gal / 45 US gal / 170l holding tank, content gauge and low noise manual overboard discharge, with macerator backup system as well as dockside discharge.
FIRE EXTINGUISHERS
Automatic fire extinguisher in engine room and generator space
Hand-operated fire extinguishers (4) in: owner’s stateroom, forward guest cabin, galley and upper saloon
BILGE PUMPS
Automatic electric bilge pumps with manual override (3 in all)
High-capacity manual bilge pump in cockpit locker with valve system and suction points in engine room and accommodation space
Electric bilge pumps to have controls and warning lights at main helm and warning light with audible alarm at helm
OTHER STANDARD EQUIPMENT
Fenders (6)
Mooring warps (4)
Ensign staff
First aid kit
Boathook
Quilted bedspreads for both cabins
Tool kit
Owner’s manual and engine manual
Manual handle for electric winch
Complete set of cutlery, china, and glassware for 6
FINISHES
Furniture finished in a choice of Rovere Oak and Alba Oak in satin lacquer finish as standard. Silver Oak or Walnut in satin or gloss lacquer finish available as an option
Galley and bathroom worktops in solid surface
Timber-laid galley floors
Bathroom floors in solid surface
Venetian blinds to all windows and portholes, and curtains to saloon doors
US SPECIFICATION INCLUDES
